Product Information
|
| |

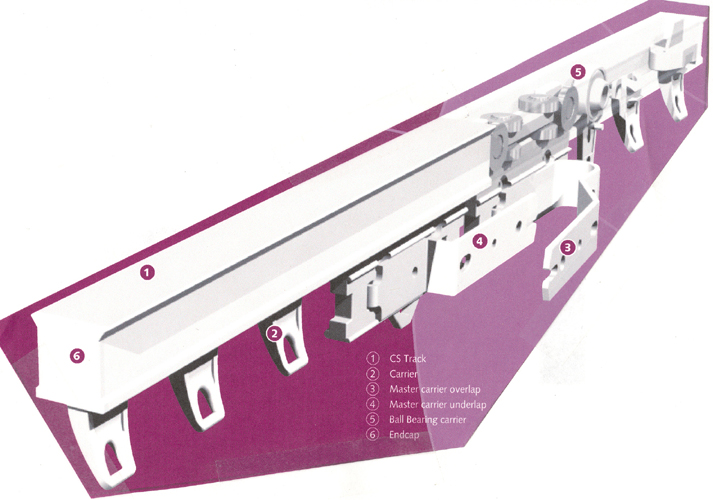

- Heavy duty hand
drawn system for medium and heavy draperies
- Bendable; it can be
curved and reversed curved using a 20 cm (8") radius
or continuous curved
- Heavy duty klickable
carriers - 5 carriers on a breakaway strip - UV protected
- Can also be used
with ball bearing carriers
- Ideal for use with
overlap masters and batons which can be mounted behind or in front
of draperies
- Maximum fabric
weight: 8 kg. per meter (6 LBS per foot).
- Colours available:
white and silver
- Track finish:
Chromated powder coated with a factory applied patented dry
lubricant
- Available lengths:
3.66 meter (12 ft.), 4.27 meter (14"), 4.88 meter (16 ft.), 6.10
meter (20 ft.)
- Limited Lifetime
Warranty

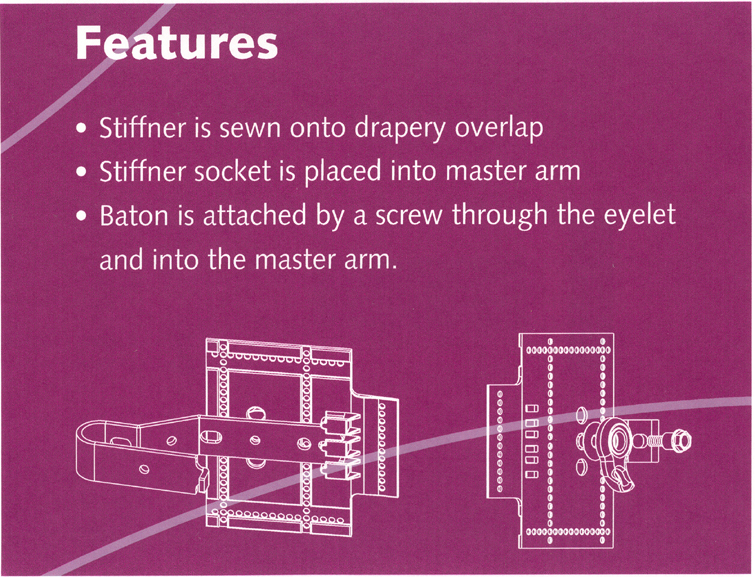

Features |
-
Stiffner
is sewn onto drapery overlap
-
Stiffner
socket is placed into master arm
-
Baton
is attached by a screw through the
eyelet... and into the master arm.
|

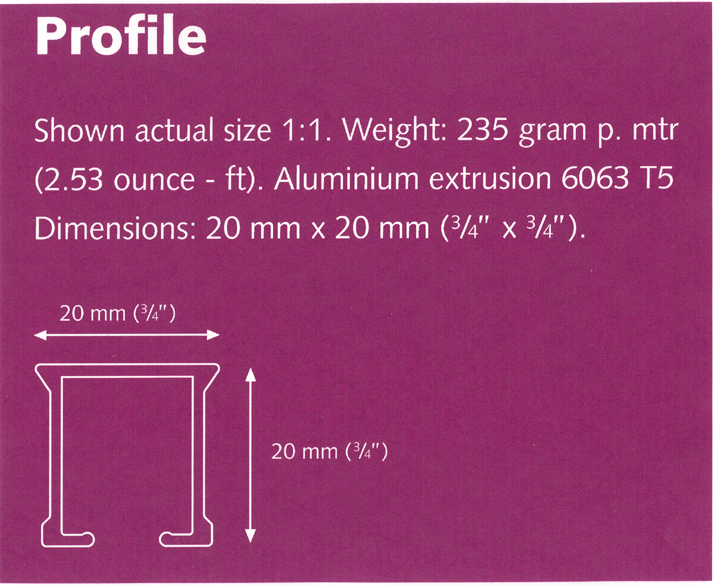

Profile |
-
Weight:
235 gram per meter (2.53
ounce-Ft.).
-
Aluminum
extrusion 6063 T5
-
Dimensions:
20 mm x 20 mm (3/4" x 3/4")
|
|
|

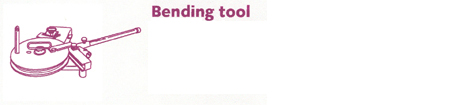

Bending & Curving
|
|
|
For
use in...
Hotels, Motels, Offices, Schools, Healthcare,
Residential or anywhere a heavy duty drawn system is
required. |

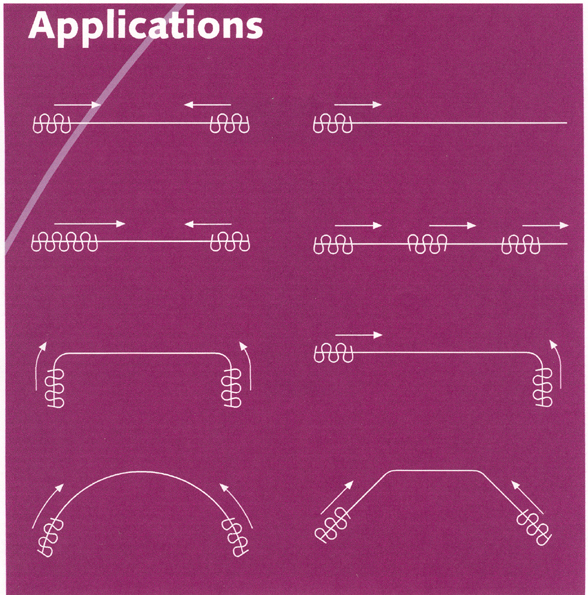

Applications |
Mounting
Brackets
Click
on Images to Enlarge |
|

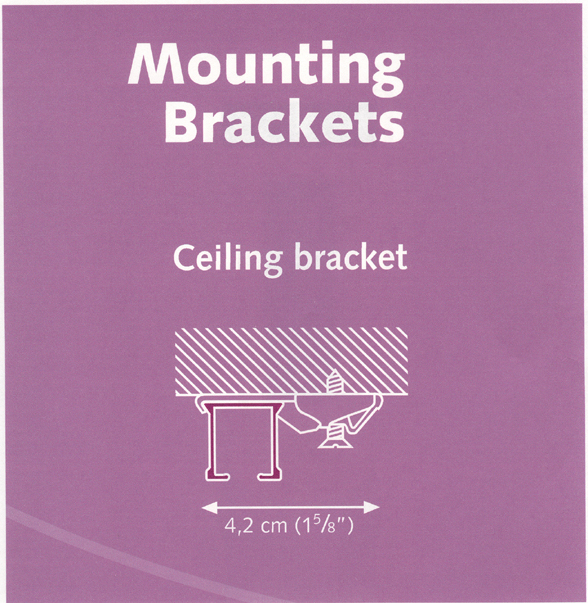

Ceiling Bracket
4,2 cm (1 5/8") |

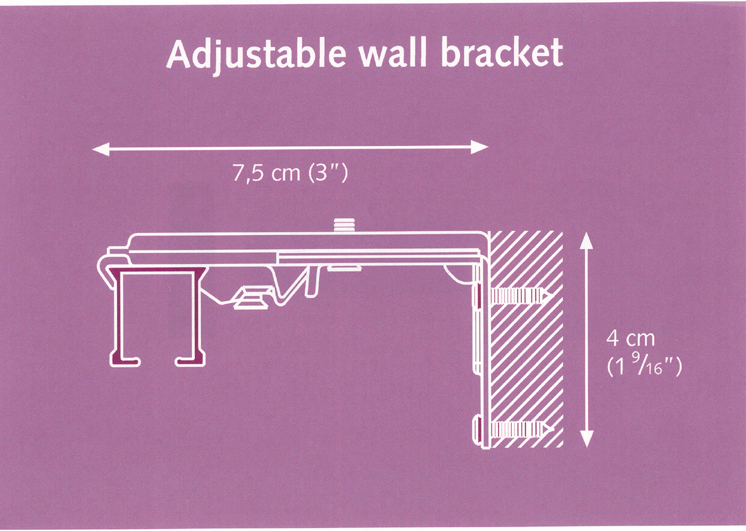

Adjustable Wall Bracket
7,5 cm (3") x 4 cm (1 9/16") |
Adjustable Wall Bracket
15 cm (6") x 4 cm (1 9/16") |
|

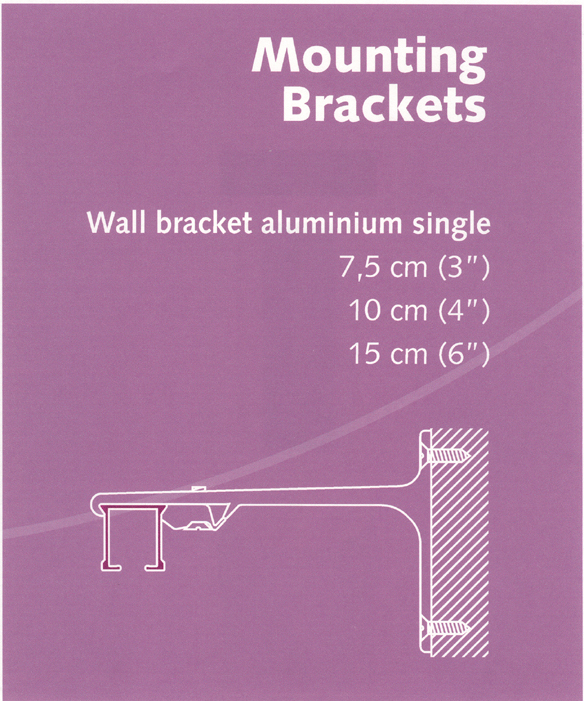

Wall Bracket Aluminum
Single 7,5 cm (3")
10 cm (4"), 15 cm (6")
|

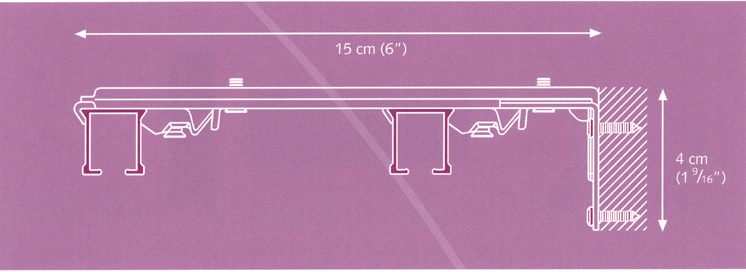

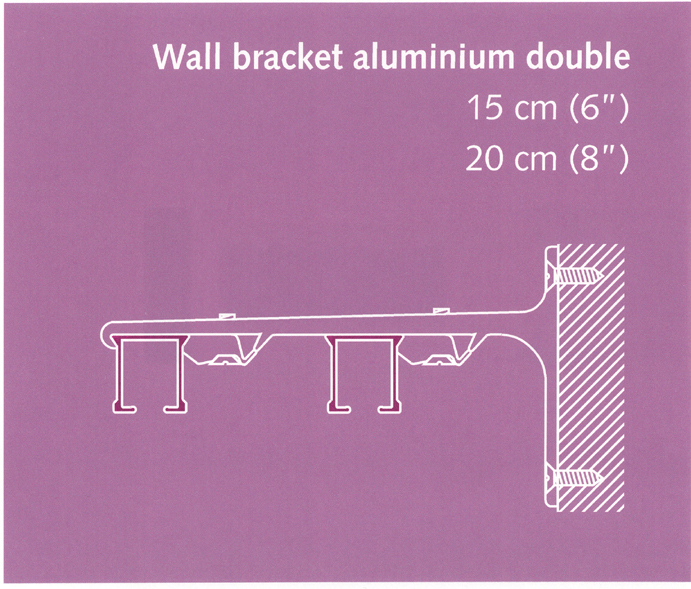

Wall Bracket Aluminum
Double
15 cm (6"), 20 cm (8")
|

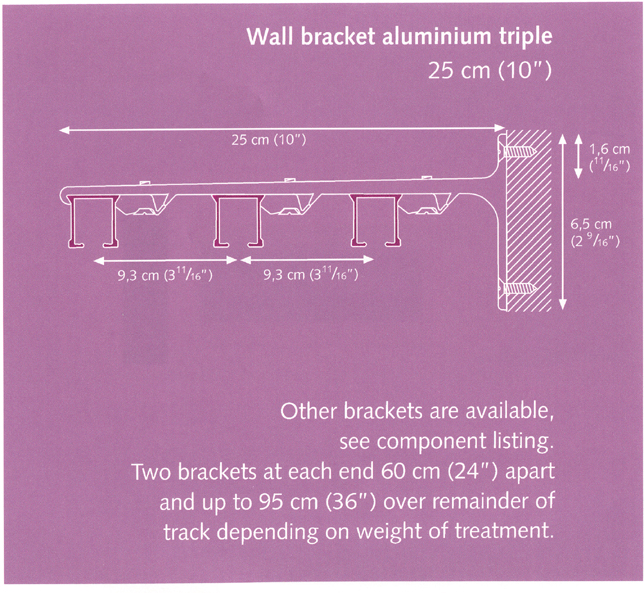

Wall Bracket Aluminum
Triple 25 cm (10")
|
|
Other brackets are available, see
Contract System & Architrac
Parts.
Two brackets at each end 60 cm (24") apart and up
to 95 cm (36") over remainder of track depending on
weight of treatment.
|
|
|

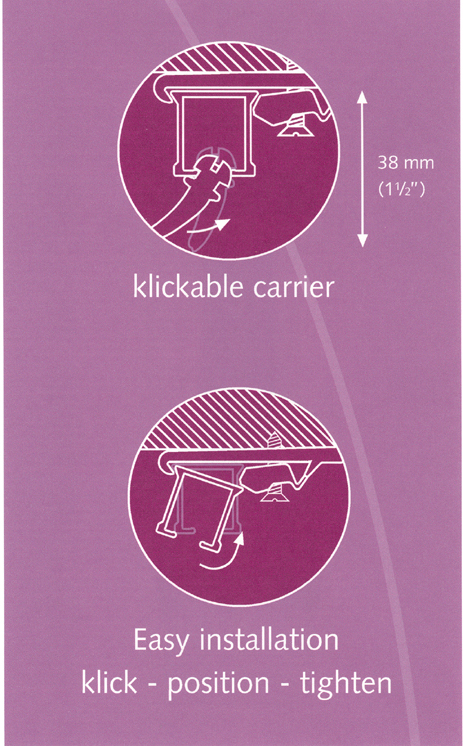

Easy
installation...
Klick - Position - Tighten
38 mm (1 1/2") |
|
|
|
